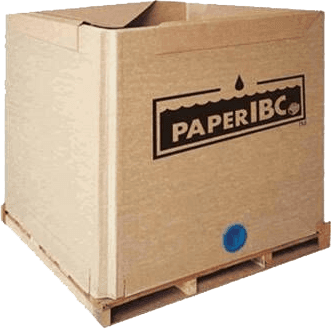

TRIPAK PAPER IBC

The Tripak Paper IBC is a highly cost effective and efficient container that allows for both liquid and solid applications. Manufactured from High Density Laminated AAA biodegrade Paper and with compression strength of 8 to 10 tonnes, the Tripak is a highly durable & cost effective single trip IBC that replaces current applications or either steel or plastic drums.

Able to pack 1,100 litres per container, and can stack 3 high per foot print, one Tripak IBC replaces 4 x 220 litre drums per pallet space. Being a single trip or way one IBC, the Tripak effectively negates the need for returnable or hire IBC charges whether your product is being transported locally, nationally or exported.


Product Benefits:

The Tripak is able to offer the following benefits:
  • Easy of Set Up – Time!
  • Storage Capacity – Stacks 3 high in static warehousing.
  • Product is fully Biodegradable recyclable for ease of disposing.
  • Wall Thickness – 9 Ply or 45MM
  • Suitable for all Non Dangerous Goods Applications

Product Application :

  • Adhesives
  • Latex
  • Cleaners
  • Lubricants
  • Emulsions
  • Oils
  • Inks
  • Shampoo
  • Diary
  • Sour Cream
  • Palm Oil
  • Tomatoe Paste
  • Citrus Juice
  • Concentrates
  • Food Ingredients
  • Honey
  • Olive Oil
  • Wine
  • Sweeteners
  • Frozen Seafood

Specifications

1,000 Litre Liquid
Outer Dimensions :
  • 1090MM x 1090MM x 1,000MM
  • Pallet Size : 1100MM x 1100MM
  • Tare Weight : 30 Kgs
800 Litre Liquid
Outer Dimensions :
  • 1030MM x 1030MM x 920MM
  • Pallet Size : 1100MM x 1100MM
  • Tare Weight : 27Kgs
1,150 Litre Solids/Powders
Outer Dimensions :
  • 1145MM x 1120MM x 1,000MM
  • Pallet Size : 1100MM x 1100MM
  • Tare Weight : 20Kgs
ENQUIRE NOW

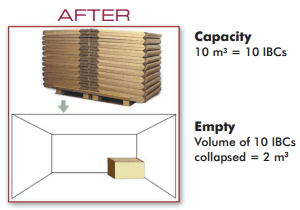

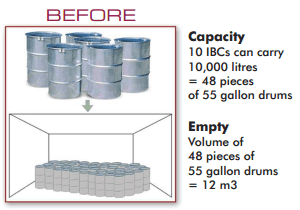

SAVE STORAGE SPACE BY 80% AND MORE

The traditional ways of transporting bulk liquid using steels or plastic drums are not only cumbersome but
also poses environmental problems such as pollution. In addition, these traditional storages could not be
stored easily due to its circular shape and wasted a lot of valuable storage spaces during transportation or
shipping.
In view of all these, the PAPERIBC is created for efficient storage and transportation of bulk liquid. Most
importantly, it is economical, easy to set up and facilitates filling, packaging, handling and transportation.
It is an ideal way for manufacturers or distributors to store all kind of liquids such as milk, fruit juices, edible

Easy to Set-up

Requires only one
person per minute to
prepare the
PAPER IBC
container for filling.
Highly cost and
resource efficient,
as no special training
is required for
unit set up

High Strength

PAPERIBC offers compression
strength from 8 to
10 tons and is
capable of stacking
3 metres high, thus
increasing storage
efficiency

Environmentally
Friendly

Completely
recyclable,
bio-degradable
and
waste-to-energy
efficient.

Export

Capable of
shipping 20
PAPER IBC
in a 20’ ocean freight
container. Extremely
popular for exporting
shipments to countries
where environmental
laws are strictly
observed.

Application of PAPERIBC

Chemical
  • Adhesives
  • Cleaners
  • Emulsions
  • Inks
  • Latex
  • Lubricants
  • Engine Oils & Greases
  • Shampoo & Detergents
    • Food
  • Soy Sauce
  • Juice Concentrates
  • Buttermilk
  • Citrus Juice
  • Edible Oils
  • Milk Products
  • Sour Cream
  • Sweeteners
  • Vinegar

    • Technical Specifications

    Capacity: 1000 litres
    Outer Dimensions: 1090mm x 1090mm x 1000mm (43" x 43" x 40")
    Thickness: 45mm
    Pallet Size: 1100mm x 1100mm (44" x 44")
    Net Weight: Approx 30kg (66lbs - without pallet)
